IACS Approved Supply Worldwide Galvanized Anchor Chain
Anchor Chain is the most common chain used in Marine Industries. Its Commonly used for Moorings, Chafe Chains & Ballast applications.
We carry a large range of both studlink and studless anchor chain to suit all your requirements. Supplied in 27.5 Metre shot lengths, our anchor chain sizes range from 16mm to 83mm, with larger sizes able to be supplied upon request.
All our stud-link chain and components are supplied with Third Party Certification from either LR, ABS or DNV.
We keep the full range of studlink chains – from 12.5 mm up to 162 mm – in stock to guarantee excellent availability.
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

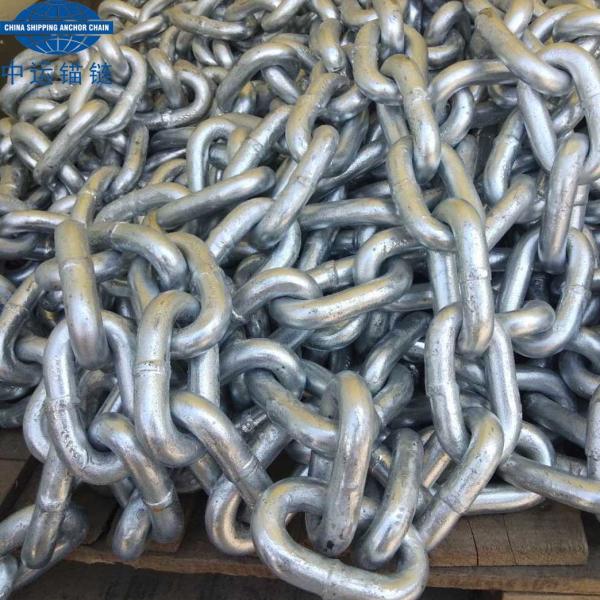

Galvanized Anchor Chain
| Diameter | CHAIN LINK SIZE | Grade 2 | Grade 3 | Grade 4 |
| | | | U2 OPEN LINK CHAIN | U3 OPEN LINK CHAIN | U4 OPEN LINK CHAIN |
| | | OUTSIDE LENGTH | OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKINGLOAD | PROOF LOAD | BREAKINGLOAD |
| | | MM | MM | KN | KN | KN | KN | KN | KN |
| 22 | 7/8 | 132 | 79 | 125.4 | 250.9 | 174.7 | 349.4 | | |
| 24 | 15/16 | 144 | 86 | 149.9 | 298.9 | 207.9 | 415.8 | | |
| 26 | 1-1/16 | 156 | 94 | 175.4 | 350.8 | 244 | 488 | | |
| 28 | 1-1/8 | 168 | 101 | 203.8 | 406.7 | 283 | 566 | | |
| 30 | 1-3/16 | 180 | 108 | 234.2 | 467.5 | 324.9 | 649.8 | 652 | 933 |
| 32 | 1-1/4 | 192 | 115 | 265.6 | 531.2 | 359.6 | 739.3 | 739 | 1057 |
| 34 | 1-5/16 | 204 | 122 | 299.9 | 599.8 | 417.3 | 834.6 | 831 | 1189 |
| 36 | 1-7/16 | 216 | 130 | 336.1 | 672.3 | 467.8 | 935.7 | 928 | 1327 |
| 38 | 1-1/2 | 228 | 137 | 374.4 | 748.7 | 521.3 | 1042.5 | 1030 | 1473 |
| 40 | 1-9/16 | 240 | 144 | 414.5 | 829.1 | 577.6 | 1155.2 | 1136 | 1626 |
| 42 | 1-5/8 | 252 | 154 | 457.7 | 915.3 | 636.8 | 1273.6 | 1248 | 1786 |
| 44 | 1-3/4 | 264 | 158 | 502.7 | 999.6 | 698.9 | 1397.8 | 1364 | 1952 |
| 46 | 1-13/16 | 276 | 166 | 548.8 | 1097.6 | 793.9 | 1527.8 | 1485 | 2125 |
| 48 | 1-7/8 | 288 | 173 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1610 | 2304 |
| 50 | 2 | 300 | 180 | 648.8 | 1293.6 | 902.5 | 1805 | 1740 | 2490 |
| 52 | 2-1/16 | 312 | 177 | 696.8 | 1393.6 | 972.2 | 1944.5 | 1875 | 2683 |
| 54 | 2-1/8 | 324 | 184 | 748.4 | 1496.8 | 1044.3 | 2088.5 | 2014 | 2882 |
| 56 | 2-3/16 | 336 | 191 | 801.6 | 1603.2 | 1118.5 | 2237 | 2157 | 3086 |
| 58 | 2-5/16 | 348 | 198 | 856.4 | 1712.8 | 1195 | 2390 | 2304 | 3297 |
| 60 | 2-3/8 | 360 | 204 | 912.8 | 1825.5 | 1273.6 | 2547.2 | 2456 | 3514 |
| 62 | 2-7/16 | 372 | 211 | 970.7 | 1941.3 | 1354.4 | 2708.8 | 2612 | 3737 |
| 64 | 2-1/2 | 384 | 218 | 1030.1 | 2060.1 | 1437.3 | 2874.5 | 2771 | 3966 |
| 66 | 2-9/16 | 396 | 225 | 1090.9 | 2181.8 | 1522.2 | 3044.4 | 2935 | 4200 |
| 68 | 2-11/16 | 408 | 232 | 1153.3 | 2306.5 | 1609.2 | 3218.3 | 3103 | 4440 |
| 70 | 2-3/4 | 420 | 238 | 1217 | 2434 | 1698.2 | 3396.3 | 3274 | 4686 |
| 73 | 2-7/8 | 438 | 248 | 1315.3 | 2630.6 | 1835.3 | 3670.6 | 3539 | 5064 |
| 76 | 3 | 456 | 239 | 1416.7 | 2833.3 | 1976.7 | 3956.4 | 3812 | 5454 |
| 78 | 3-1/16 | 468 | 266 | 1485.9 | 2971.8 | 2073.3 | 4146.7 | 3998 | 5721 |
| 81 | 3-3/16 | 486 | 276 | 1592.2 | 3184.4 | 2221.7 | 4443.4 | 4284 | 6130 |
| 84 | 3-5/16 | 504 | 286 | 1701.4 | 3402.8 | 2374 | 4748 | 4587 | 6550 |
| 87 | 3-7/16 | 522 | 296 | 1813.3 | 3626.7 | 2530.2 | 5060.4 | 4879 | 6981 |
| 90 | 3-9/16 | 540 | 306 | 1928 | 3856 | 2690.2 | 5380.3 | 5187 | 7423 |
| Nominal Diameter (mm) | Proof Test Load (kN) | Breaking Test Load (kN) | Nominal Diameter (mm) | Proof Test Load (kN) | Breaking Test Load (kN) |
| Grade 2 | Grade 3 | Grade 4 | Grade 2 | Grade 3 | Grade 4 | Grade 2 | Grade 3 | Grade 4 | Grade 2 | Grade 3 | Grade 4 |
| 17.5 | 127 | 179 | | 179 | 256 | | 76 | 2150 | 3010 | 3943 | 3010 | 4300 | 5454 |
| 19 | 150 | 211 | | 211 | 301 | | 78 | 2260 | 3160 | 4136 | 3160 | 4500 | 5721 |
| 20.5 | 175 | 244 | | 244 | 349 | | 81 | 2410 | 3380 | 4432 | 3380 | 4820 | 6130 |
| 22 | 200 | 280 | | 280 | 401 | | 84 | 2580 | 3610 | 4735 | 3610 | 5160 | 6550 |
| 24 | 237 | 332 | | 332 | 476 | | 87 | 2750 | 3850 | 5047 | 3850 | 5500 | 6981 |
| 26 | 278 | 389 | | 389 | 556 | | 90 | 2920 | 4090 | 5366 | 4090 | 5840 | 7423 |
| 28 | 321 | 449 | | 449 | 642 | | 92 | 3040 | 4260 | 5583 | 4260 | 6080 | 7723 |
| 30 | 368 | 514 | 674 | 514 | 735 | 933 | 95 | 3230 | 4510 | 5914 | 4510 | 6440 | 8180 |
| 32 | 417 | 583 | 764 | 583 | 833 | 1057 | 97 | 3340 | 4680 | 6138 | 4680 | 6690 | 8491 |
| 34 | 468 | 655 | 859 | 655 | 937 | 1189 | 100 | 3530 | 4940 | 6480 | 4940 | 7060 | 8964 |
| 36 | 523 | 732 | 960 | 732 | 1050 | 1327 | 102 | 3660 | 5120 | 6712 | 5120 | 7320 | 9285 |
| 38 | 581 | 812 | 1065 | 812 | 1160 | 1473 | 105 | 3850 | 5390 | 7065 | 5390 | 7700 | 9774 |
| 40 | 640 | 896 | 1176 | 896 | 1280 | 1626 | 107 | 3980 | 5570 | 7304 | 5570 | 7960 | 10104 |
| 42 | 703 | 981 | 1291 | 981 | 1400 | 1786 | 111 | 4250 | 5940 | 7789 | 5940 | 8480 | 10775 |
| 44 | 769 | 1080 | 1411 | 1080 | 1540 | 1952 | 114 | 4440 | 6230 | 8160 | 6230 | 8890 | 11288 |
| 46 | 837 | 1170 | 1536 | 1170 | 1680 | 2125 | 117 | 4650 | 6510 | 8536 | 6510 | 9300 | 11808 |
| 48 | 908 | 1270 | 1666 | 1270 | 1810 | 2304 | 120 | 4850 | 6810 | 8917 | 6810 | 9720 | 12335 |
| 50 | 981 | 1370 | 1800 | 1370 | 1960 | 2490 | 122 | 5000 | 7000 | 9174 | 7000 | 9990 | 12690 |
| 52 | 1060 | 1480 | 1940 | 1480 | 2110 | 2683 | 124 | 5140 | 7200 | 9433 | 7200 | 10280 | 13048 |
| 54 | 1140 | 1590 | 2083 | 1590 | 2270 | 2882 | 127 | 5350 | 7490 | 9825 | 7490 | 10710 | 13591 |
| 56 | 1220 | 1710 | 2231 | 1710 | 2430 | 3086 | 130 | 5570 | 7800 | 10222 | 7800 | 11140 | 14140 |
| 58 | 1290 | 1810 | 2384 | 1810 | 2600 | 3297 | 132 | 5720 | 8000 | 10488 | 8000 | 11420 | 14509 |
| 60 | 1380 | 1940 | 2541 | 1940 | 2770 | 3514 | 137 | 6080 | 8510 | 11163 | 8510 | 12160 | 15442 |
| 62 | 1470 | 2060 | 2702 | 2060 | 2940 | 3737 | 142 | 6450 | 9030 | 11847 | 9030 | 12910 | 16389 |
| 64 | 1560 | 2190 | 2867 | 2190 | 3130 | 3966 | 147 | 6840 | 9560 | 12541 | 9560 | 13660 | 17348 |
| 66 | 1660 | 2310 | 3036 | 2312 | 3300 | 4200 | 152 | 7220 | 10100 | 13242 | 10100 | 14430 | 18318 |
| 68 | 1750 | 2450 | 3210 | 2450 | 3500 | 4440 | 157 | 7600 | 10640 | 13950 | 10640 | 15200 | 19297 |
| 70 | 1840 | 2580 | 3387 | 2580 | 3690 | 4686 | 162 | 7990 | 11180 | 14664 | 11180 | 15980 | 20284 |
| 73 | 1990 | 2790 | 3661 | 2790 | 3990 | 5064 | | | | | | | |
Our Advantage:
1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place
2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.
3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.
4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
