High Holding HHP 30000kg IACS Marine Offshore Anchors

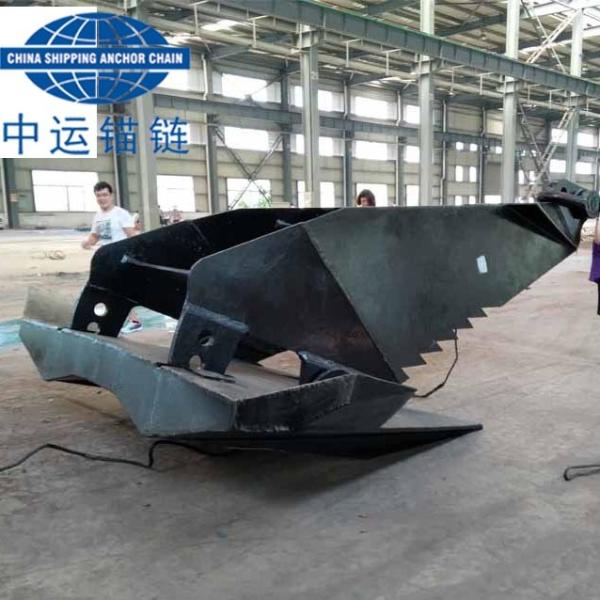

Stevpris HHP Anchor With IACS Cert. Marine Offshore Anchors

An adapted version of the Stevpris Mk5, called ‘ Stevshark’, facilitates performance in hard soils such as limestone, calcarenite, very dense sands and coral. It has identical inherent qualities to the Stevpris Mk5, and its modifications include a stronger construction, shark teeth, sharp fluke edges and fluke tips. Optionally the hollow fluke can be ballasted to assist initial penetration.
There is a new design over this anchor. The fluke of the new designed anchor has large area, and the two sharp teeth of the fluke make the anchor more easily penetrate into the soil, and the depth of penetration is large, and the drag distance required to achieve the maximum grip force is short. The angle between the fluke and the anchor shank is adjustable, 50degrees in very soft clay (sludge), 41degrees in medium hardness clay, and 32degrees in sand and hard mud. The maximum holding capacity in the sludge is up to 311 t (44 times its own weight), the maximum holding force in medium hardness clay is 436 t (62 times its own weight), and the maximum holding force in sand and hard mud is up to 561. t (80 times the weight).
Advantage of MK6 Anchor
Extreme holding power due to wider fluke and deeper penetration
Ultimate structure integrity to withstand the toughest deep water condition
Easy handling, fits most anchor racks
Accommodates the widest range of soils.
Excellent stability due to slim design and easy penetration.
Certificate:
ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS

Features:

• MK5/MK6 Anchor is easy to handle, install and retrieve and is used to secure semi-submersible rigs and permanent installations.

• MK 5/MK6 Anchor does well in hard soils such as limestone, calcarenite, very dense sands, and coral.

High Holding Power Anchor MK6 Type Date Sheet

Our Advantage:

1. Are you Manufactuer?
Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port
shanghai docking place, chengxi qidong docking place and zhoushan docking place

2. Your quality?
Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.
we have skillful technicist team and quality team and with IACS approved workers.

3. Your production?
We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel
and our normally production time is 15days. with IACS cert.

4. Could you offer other advantage?
we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.
And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
And we keep some anchor in stock with LR / NK cert.

TAG: Stevpris HHP Anchor Marine Offshore Anchors Stevpris Anchor with IACS cert.

China Shipping Anchor Chain (Jiangsu) Co., Ltd was founded in 2010, total investment nearly one billion, intending to be the most modernized product line in China, manufacturing welded anchor chain, offshore mooring chain and steel structured anchor. We mainly manufacture marine anchor chain from 22mm to 162mm, offshore mooring chain, ship anchor chain, stud link anchor chain, studless anchor chain, galvanized anchor chain, offshore chain, buoy chain, marking chain, buoy chain, chafing chain, steel structured anchor, flipper delta anchor, delta anchor, stevpris anchor, MK5 anchor, MK6 anchor, spek anchor, hall anchor, admiralty anchor, AC-14 HHP anchor, aquaculture anchor, steel structured buoy, mooring buoy, shipboard fittings and so on, we can supply with CCS, BV, LR, ABS, KR, NK, DNV-GL and other certificate from 11 class societies and admiralty approval.

Our company is located in Jingjiang of Jiangsu province, near to the sea, convenient for load and sea transportation. First phase project covers 180,000 square meters, including 70,000 square meters. Current staff more than 500 personal, including engineer and professional managing staff 75 people. Our technical staff including senior engineer and technician, possess rich experience in design, manufacturing and quality control of anchor chain, which insure us manufacturing high quality products. Our managing stuff focus on product quality and innovation, intending to be leading enterprise in anchor chain manufacturing field.

Currently, first phase project, total investment nearly half billion mainly possesses 5#, 7#, 9#, 11# anchor chain manufacturing machine, tempering machine, load test machine, cutting machine, property testing machine and shot blasting machine. Computer aided technology and network information technology is widely used in our factory, we established computer management information system, which allocate resources properly and improve the production efficiency.

Our company believes in scientific outlook on development, we improve our quality by innovation and develop steadily, harmoniously, safely, and scientifically by improving our efficiency and economic effectiveness. We focus on demands of clients, we serve our clients with high quality products and thoughtful service, we believe Aohai will be a shining star in anchor chain industry.
