Grade U2 Galvanized Anchor Chain--China Shipping Anchor Chain

Grade U2 Galvanized Anchor Chain Manufactuer China Shipping Anchor Chain

Anchor chains are produced to ISO 1704 standards. Used for anchor and mooring chains, the most common used are stud link anchor chain, stud link anchor chains have a central stud for extra strength. Studlink anchor chains are available in various grades from grade 2 up to grade 3. The studlink anchor chain in grade 2 and grade 3 are the most used anchor chains for commercial shipping. The difference between grade 2 and grade 3 is the additional heat treatment process after manufacturing of the anchor chain that upgrades the quality. Studlink chains are available in black (tarred), galvanised and stainless steel.

China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

Galvanized Anchor Chain

Grade U2 Galvanized Anchor Chain--China Shipping Anchor Chain

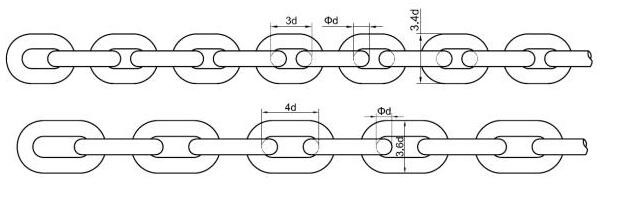

Diameter		CHAIN LINK SIZE		Grade 2		Grade 3		Grade 4
				U2 OPEN LINK CHAIN		U3 OPEN LINK CHAIN		U4 OPEN LINK CHAIN
		OUTSIDE LENGTH	OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKINGLOAD	PROOF LOAD	BREAKINGLOAD
		MM	MM	KN	KN	KN	KN	KN	KN
22	7/8	132	79	125.4	250.9	174.7	349.4
24	15/16	144	86	149.9	298.9	207.9	415.8
26	1-1/16	156	94	175.4	350.8	244	488
28	1-1/8	168	101	203.8	406.7	283	566
30	1-3/16	180	108	234.2	467.5	324.9	649.8	652	933
32	1-1/4	192	115	265.6	531.2	359.6	739.3	739	1057
34	1-5/16	204	122	299.9	599.8	417.3	834.6	831	1189
36	1-7/16	216	130	336.1	672.3	467.8	935.7	928	1327
38	1-1/2	228	137	374.4	748.7	521.3	1042.5	1030	1473
40	1-9/16	240	144	414.5	829.1	577.6	1155.2	1136	1626
42	1-5/8	252	154	457.7	915.3	636.8	1273.6	1248	1786
44	1-3/4	264	158	502.7	999.6	698.9	1397.8	1364	1952
46	1-13/16	276	166	548.8	1097.6	793.9	1527.8	1485	2125
48	1-7/8	288	173	597.8	1195.6	831.7	1663.5	1610	2304
50	2	300	180	648.8	1293.6	902.5	1805	1740	2490
52	2-1/16	312	177	696.8	1393.6	972.2	1944.5	1875	2683
54	2-1/8	324	184	748.4	1496.8	1044.3	2088.5	2014	2882
56	2-3/16	336	191	801.6	1603.2	1118.5	2237	2157	3086
58	2-5/16	348	198	856.4	1712.8	1195	2390	2304	3297
60	2-3/8	360	204	912.8	1825.5	1273.6	2547.2	2456	3514
62	2-7/16	372	211	970.7	1941.3	1354.4	2708.8	2612	3737
64	2-1/2	384	218	1030.1	2060.1	1437.3	2874.5	2771	3966
66	2-9/16	396	225	1090.9	2181.8	1522.2	3044.4	2935	4200
68	2-11/16	408	232	1153.3	2306.5	1609.2	3218.3	3103	4440
70	2-3/4	420	238	1217	2434	1698.2	3396.3	3274	4686
73	2-7/8	438	248	1315.3	2630.6	1835.3	3670.6	3539	5064
76	3	456	239	1416.7	2833.3	1976.7	3956.4	3812	5454
78	3-1/16	468	266	1485.9	2971.8	2073.3	4146.7	3998	5721
81	3-3/16	486	276	1592.2	3184.4	2221.7	4443.4	4284	6130
84	3-5/16	504	286	1701.4	3402.8	2374	4748	4587	6550
87	3-7/16	522	296	1813.3	3626.7	2530.2	5060.4	4879	6981
90	3-9/16	540	306	1928	3856	2690.2	5380.3	5187	7423

Nominal Diameter (mm)	Proof Test Load (kN)			Breaking Test Load (kN)			Nominal Diameter (mm)	Proof Test Load (kN)			Breaking Test Load (kN)
Nominal Diameter (mm)	Grade 2	Grade 3	Grade 4	Grade 2	Grade 3	Grade 4	Nominal Diameter (mm)	Grade 2	Grade 3	Grade 4	Grade 2	Grade 3	Grade 4
17.5	127	179		179	256		76	2150	3010	3943	3010	4300	5454
19	150	211		211	301		78	2260	3160	4136	3160	4500	5721
20.5	175	244		244	349		81	2410	3380	4432	3380	4820	6130
22	200	280		280	401		84	2580	3610	4735	3610	5160	6550
24	237	332		332	476		87	2750	3850	5047	3850	5500	6981
26	278	389		389	556		90	2920	4090	5366	4090	5840	7423
28	321	449		449	642		92	3040	4260	5583	4260	6080	7723
30	368	514	674	514	735	933	95	3230	4510	5914	4510	6440	8180
32	417	583	764	583	833	1057	97	3340	4680	6138	4680	6690	8491
34	468	655	859	655	937	1189	100	3530	4940	6480	4940	7060	8964
36	523	732	960	732	1050	1327	102	3660	5120	6712	5120	7320	9285
38	581	812	1065	812	1160	1473	105	3850	5390	7065	5390	7700	9774
40	640	896	1176	896	1280	1626	107	3980	5570	7304	5570	7960	10104
42	703	981	1291	981	1400	1786	111	4250	5940	7789	5940	8480	10775
44	769	1080	1411	1080	1540	1952	114	4440	6230	8160	6230	8890	11288
46	837	1170	1536	1170	1680	2125	117	4650	6510	8536	6510	9300	11808
48	908	1270	1666	1270	1810	2304	120	4850	6810	8917	6810	9720	12335
50	981	1370	1800	1370	1960	2490	122	5000	7000	9174	7000	9990	12690
52	1060	1480	1940	1480	2110	2683	124	5140	7200	9433	7200	10280	13048
54	1140	1590	2083	1590	2270	2882	127	5350	7490	9825	7490	10710	13591
56	1220	1710	2231	1710	2430	3086	130	5570	7800	10222	7800	11140	14140
58	1290	1810	2384	1810	2600	3297	132	5720	8000	10488	8000	11420	14509
60	1380	1940	2541	1940	2770	3514	137	6080	8510	11163	8510	12160	15442
62	1470	2060	2702	2060	2940	3737	142	6450	9030	11847	9030	12910	16389
64	1560	2190	2867	2190	3130	3966	147	6840	9560	12541	9560	13660	17348
66	1660	2310	3036	2312	3300	4200	152	7220	10100	13242	10100	14430	18318
68	1750	2450	3210	2450	3500	4440	157	7600	10640	13950	10640	15200	19297
70	1840	2580	3387	2580	3690	4686	162	7990	11180	14664	11180	15980	20284
73	1990	2790	3661	2790	3990	5064

Our Advantage:

1. Are you Manufactuer?

Yes we are Anchor Chain Manufactuer, our factory located near changjiang river with convenient transportation to shanghai port

shanghai docking place, chengxi qidong docking place and zhoushan docking place

2. Your quality?

Our factory have KR LR BV NK CCS ABS DNV GL RMRS RINA ...all IACS approved you can trust our quality.

we have skillful technicist team and quality team and with IACS approved workers.

3. Your production?

We have 30 sets flash butt welded lines can production 16mm~200mm anchor chain, with 2200T/Month over 30000T annuel

and our normally production time is 15days. with IACS cert.

4. Could you offer other advantage?

we keep 50~122mm anchor chain steel round bar and anchor chain in stock can delivery 1~5days for 10~22 length.

And we can offer anchor chain repair install and clean work in china singpaore or other Euro port can offer you on stop service, save your docking time and cost.
